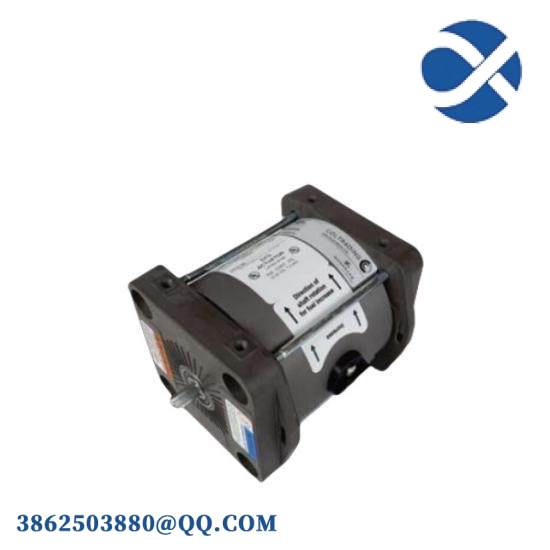

Woodward EPG 8256-016 Rotary Actuator – Precision Control for Industrial Applications

Manufacturer:Woodward

Series:EPG (Electrically Powered Governor)

Part Number:8256-016

Model Type:Rotary Actuator

Battery Voltage:24-Volt

Engine Compatibility:Gas Engine, Diesel

Fuel Limit Capability:Gasoline w/ Start

Maximum Wire Length:11 m (for 14 AWG) or 23 m (for 12 AWG)

Switch Rating for Model 1724:10 A

Compliance Type:EU Directive

Weight:Approximately 1 lb

Power Supply Voltage Range:Minimum 10 Vdc, Maximum 16 Vdc

Maximum Power Consumption:60 watts

Ambient Temperature Range:-40 to 200°F

Mounting Requirements:Metal plate, Torque screws

    The Woodward EPG 8256-016 Rotating Actuator is engineered for durability and reliability, featuring a corrosion-resistant design suitable for diverse industrial environments. Its lightweight construction facilitates direct mounting on compatible engines, simplifying installation and maintenance.

    Equipped with a linear linkage, this actuator ensures precise control over fuel use, optimizing engine performance. It operates on a 24-Volt battery, providing efficient power delivery for accurate speed adjustments.

    Designed for seamless integration with Woodward‘s EPG system, the 8256-016 Actuator supports a wide range of applications, enhancing operational efficiency across various industries. Its compact size and compatibility with different engine types make it a versatile choice for industrial control systems.

    With a maximum power consumption of 60 watts, this actuator delivers robust performance without imposing excessive demands on power resources. It also includes an overtravel feature for added safety, ensuring smooth operation and preventing potential damage.

    The Woodward 8256-016 EPG Rotating Actuator comes with a three-year warranty, backed by AX Control’s commitment to quality and customer satisfaction. This assurance reflects our dedication to providing reliable solutions for industrial control needs.
