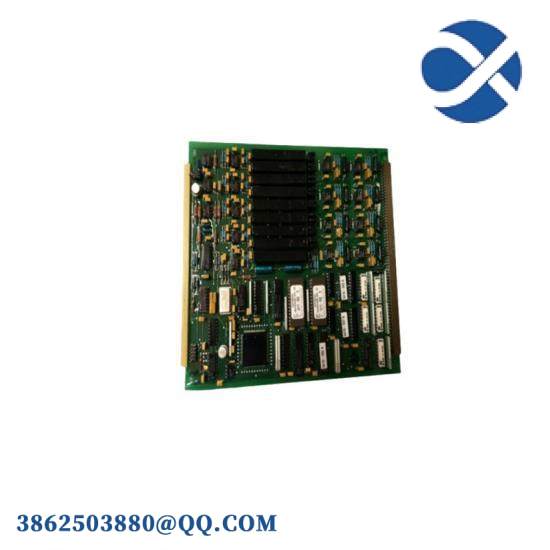

WOODWARD 5461-650 Temperature/Current Input Board

Brand:WOODWARD

Model:5461-650

Module Type:Temperature/Current Input

Power Consumption:5W

Input Range:-20°C to 100°C / 0mA to 20mA

Operating Voltage:DC 24V

Operating Current:≤50mA

Accuracy:±0.5% ±2 digits

Relay Outputs:2 sets

Communication Interface:RS-485

Operating Temperature:-40°C to 85°C

Storage Temperature:-40°C to 85°C

Humidity Range:0% to 95% RH, non-condensing

Dimensions:120mm x 80mm x 20mm

Weight:0.2kg

    The WOODWARD 5461-650 Input Board is engineered for high accuracy and robust performance in demanding industrial settings. Its advanced analog signal processing ensures precise temperature and current measurements, crucial for maintaining optimal operational conditions.

    With an IP67 environmental rating, this board is designed to withstand challenging conditions, including dust, water ingress, and extreme temperatures, ensuring reliability in outdoor or industrial plant environments.

    Featuring a 12VDC power supply and capable of handling up to 5A of current, the 5461-650 Input Board is versatile enough for a wide range of industrial applications, from HVAC systems to process control processes.

    Equipped with RS485 communication interface, it supports MODBUS RTU protocol, facilitating seamless integration with existing industrial automation systems, enhancing system efficiency and reducing setup complexities.

    This Input Board is a critical component for monitoring and controlling various parameters in industrial machinery, offering a cost-effective solution for enhancing safety, productivity, and energy efficiency.
