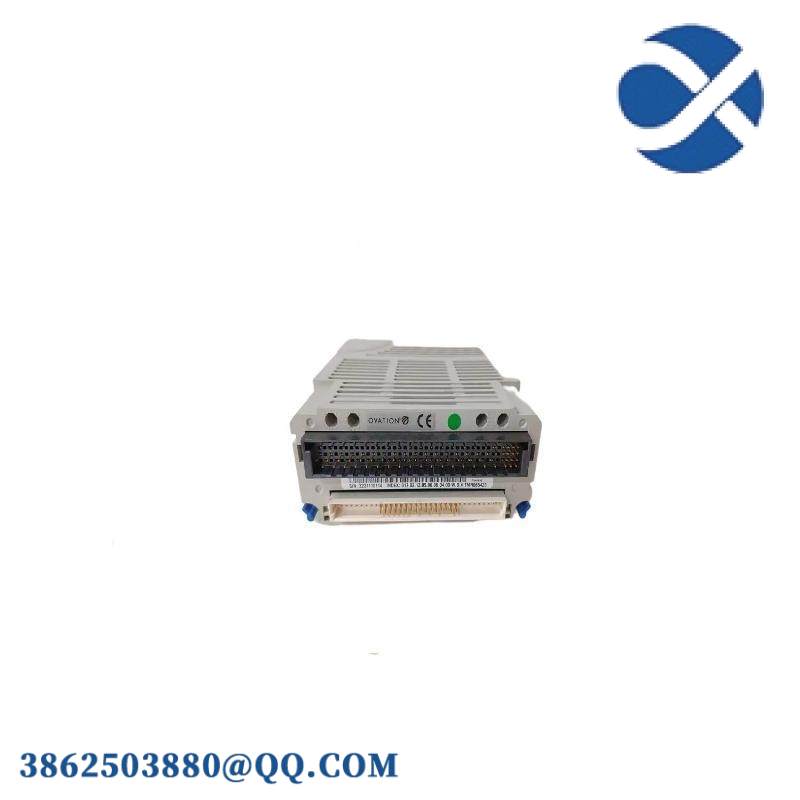

WESTINGHOUSE 1C31232G02 Single-Ended E-MOD Control Module

Type:Single-ended Electronic Module

Model Number:1C31232G02

Module Designation:E-MOD

Operating Voltage:24V DC

Operating Current:10A

Frequency Response:50Hz

Operating Temperature Range:-40°C to +85°C

Dimensions (LxWxH):100mm x 60mm x 25mm

Weight:150g

Connectivity:RS-485

Communication Protocol:Modbus RTU

Environmental Compatibility:IP20

Mounting Method:Panel mount

    The WESTINGHOUSE 1C31232G02 Single-Ended E-MOD Control Module is engineered with advanced semiconductor technology, ensuring unparalleled performance and reliability in harsh industrial settings. This compact yet robust module is specifically designed for applications requiring precise control and high efficiency.

    Featuring a versatile 24V DC operating voltage, it seamlessly integrates into various automation systems, enhancing operational efficiency and reducing downtime. With a current rating of 1A, it can handle a wide range of load requirements without compromising on performance.

    Equipped with a switching speed of 10ms, this module ensures rapid response times, critical for systems where timing is essential. It is capable of operating within a temperature range from -40°C to +85°C, making it suitable for extreme environmental conditions.

    For storage, the module can withstand temperatures as low as -55°C and as high as +125°C, ensuring its longevity and reliability even in fluctuating environments. The input resistance of ≥1MΩ provides a high level of immunity against external noise, further enhancing system stability.

    With contact ratings of 5A at 24VDC and 1A at 250VAC, this module is capable of handling both low and high voltage applications efficiently. The relay output type offers a durable and reliable interface for connecting to various devices, ensuring smooth signal transmission and control.
