CPU Type:Compact CPU with MPI Interface
Digital I/O:24 Input / 16 Output Channels
Analog Inputs:4 Channels
Analog Outputs:2 Channels
Temperature Sensor:1 PT100 Channel
High-Speed Counters:4 at 60 kHz
Power Supply:Integrated 24 V DC
Working Memory:32 KB
Network Interfaces:MPI/DP Interface
Dimensions:13.20 x 15.20 x 13.10 inches
Weight:0.733 kg
Operating Voltage:24 V DC
Software Compatibility:S7-300 Compatible

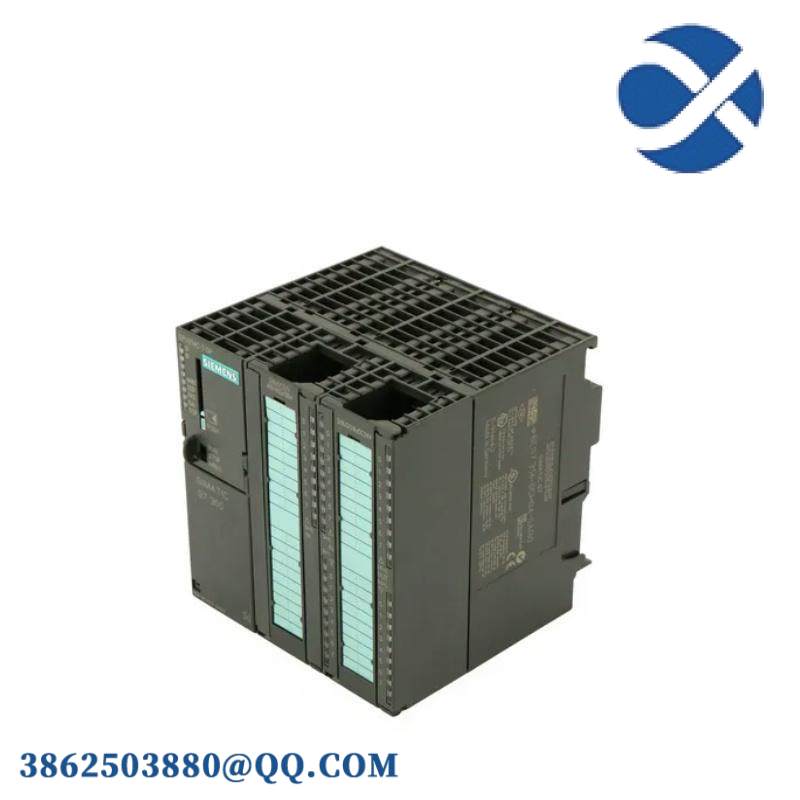

The SIEMENS S7-300 Compact CPU 314C-2 DP is engineered for high performance and reliability in industrial applications. It seamlessly integrates MPI (Multiprotocol Interface) for easy communication with a wide range of devices.
With its robust 192KB working memory, this CPU supports complex programming needs, enabling the execution of sophisticated control algorithms. The integration of 24 digital inputs and 16 digital outputs provides ample flexibility for signal handling.
Equipped with 4 analog inputs and 2 analog outputs, it can accurately manage temperature sensors and other continuous process variables, ensuring precise control over critical processes. The inclusion of a single Pt100 sensor connection allows for temperature measurement in various applications.
The addition of four high-speed counters (operating at 60kHz) is ideal for timing and position control tasks, making it suitable for applications requiring fast and accurate data acquisition and processing.
Featuring an integrated 24V DC power supply, this CPU ensures stable operation without the need for external power sources. Its compact size and lightweight design facilitate easy installation in confined spaces, enhancing its versatility in diverse industrial settings.
