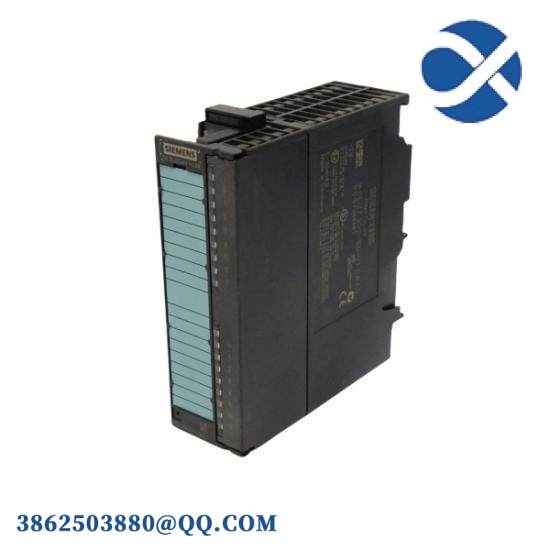

Siemens 6ES7 322-1BH01-0AA0 Digital Output Module

Model Type:S7-300

Module Type:Digital Output

Number of Channels:16

Channel Configuration:Isolated

Contact Type:Relay

Current Rating:Up to 1A

Operating Voltage:24V DC

Operating Temperature:-25°C to +60°C

Communication Interface:MPI/DP

Memory Capacity:Programmable

Power Supply:24V DC

Mounting Style:Plug-in

Dimensions:131mm x 150mm x 51mm

Weight:270g

    The Siemens 6ES7 322-1BH01-0AA0 digital output module is designed for seamless integration into complex industrial control systems. Its compact size and robust construction ensure reliable performance under demanding conditions.

    Featuring 16 isolated relay contacts, this module provides precise control over actuators, sensors, and other devices in a wide range of applications. The 20-pole design ensures high signal integrity and compatibility with various wiring standards.

    With an operating temperature range from -20°C to +60°C and a humidity tolerance of 5% to 95% non-condensing, this module is suitable for use in diverse industrial environments. It withstands extreme temperatures and humidity changes, ensuring stable operation throughout the year.

    The module includes advanced diagnostic features that monitor the status of outputs, detecting potential issues like short circuits, ground faults, and open circuits. This proactive approach enhances system reliability and reduces maintenance costs.

    The 6ES7 322-1BH01-0AA0 is compatible with leading automation platforms, including SIMATIC S7 and LOGO! series. It supports integration through standard communication protocols, facilitating easy setup and management in modern industrial settings.
