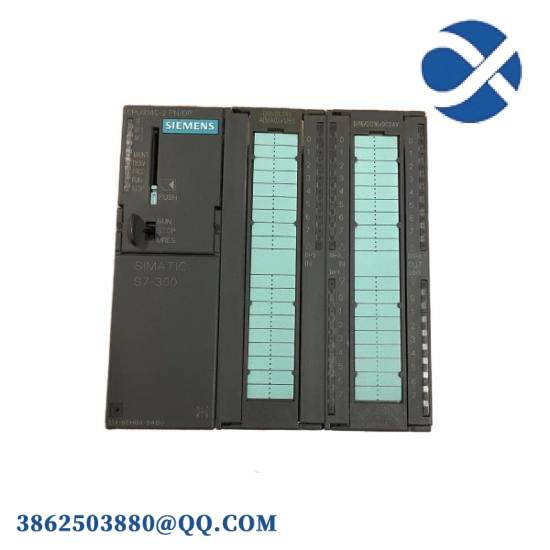

Siemens 6ES7 314-6EH04-0AB0 CPU 314C-2PN/DP Compact CPU

Manufacturer:Siemens

Model Number:6ES7 314-6EH04-0AB0

Type:CPU 314C-2PN/DP

Functionality:Compact controller with 192 KB work memory, 24 DI/16 DO, 4 AI, 2 AO, 1 Pt100, 4 high-speed counters (60 kHz)

Communication Interface:MPI/DP 12 Mbit/s, Ethernet PROFINET with 2-port switch

Power Supply:Integrated 24 V DC

Dimensions:13.20 x 15.30 x 12.70 cm

Weight:0.802 kg

    Integrating Siemens’ latest technology, the 6ES7 314-6EH04-0AB0 CPU 314C-2PN/DP offers unparalleled performance in industrial automation systems. This compact control module is designed for seamless integration into complex machinery, ensuring efficient operation and minimizing downtime.

    Equipped with a robust 192 KB work memory, it can handle a wide range of applications, from simple control tasks to sophisticated process monitoring. The CPU supports 24 digital inputs and 16 digital outputs, providing ample connectivity for a variety of sensors and actuators.

    With four analog inputs and two analog outputs, this CPU is versatile enough to interface with various sensors and actuators, making it suitable for precision control applications. The built-in Pt100 input allows for temperature measurement, enhancing its utility in industries requiring temperature control.

    Featuring four high-speed counters running at 60 kHz, the module excels in processing fast-changing signals, making it ideal for applications where speed and accuracy are paramount. The inclusion of an Ethernet PROFINET interface and a dual-port switch facilitates easy network integration and communication within a factory environment.

    Powering the module is a 24 V DC integrated power supply, ensuring stable and reliable operation under various conditions. The compact design with a front connector (2x 40-pin) and micro memory card slot allows for quick setup and maintenance, further streamlining the installation process.
