Power Consumption:1.5 W (max.)
Operating Temperature Range:-20°C to +60°C
Communication Interface:Modbus TCP/IP
Number of Inputs/Outputs:8 Inputs, 12 Outputs
Input Voltage:DC 24 V
Output Voltage:DC 24 V
Relay Contacts:8 Form C (SPST) relays
Protection Class:IP20
Dimensions (W x H x D):84 mm x 22 mm x 84 mm

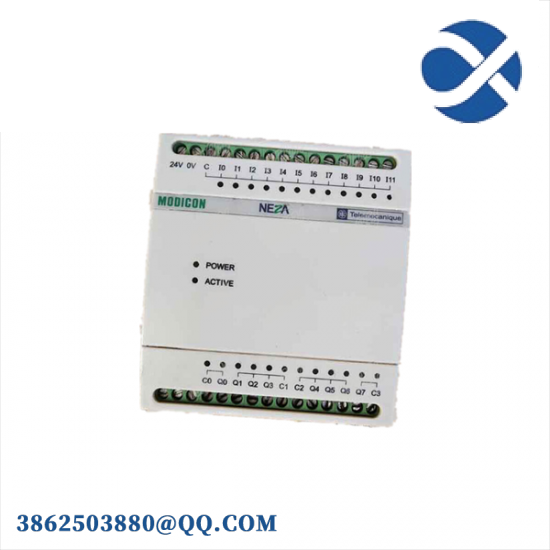

The Schneider TSX08ED12RD Expansion Module is engineered to seamlessly integrate with Schneider‘s range of programmable logic controllers (PLCs), offering a robust solution for expanding your control system capabilities. Its modular design allows for flexible configuration, making it suitable for a wide array of industrial applications from manufacturing lines to process control systems.
Key features include a high-speed communication interface, enabling fast data exchange with other components in the network. The module supports Modbus TCP/IP, facilitating compatibility with a broad spectrum of devices and software solutions.
With 8 inputs and 12 outputs, this expansion module provides ample connectivity options for your automation needs. Each input can handle a wide range of signal types, ensuring versatility in signal acquisition. The outputs are equipped with 8 Form C (SPST) relays, providing reliable switching capabilities for controlling actuators and other load handling tasks.
Designed for operation within a temperature range of -20°C to +60°C, the Schneider TSX08ED12RD Expansion Module ensures reliable performance in various industrial environments. Its compact size (84 mm x 22 mm x 84 mm) and IP20 protection class make it suitable for mounting on control panels or in confined spaces without compromising on safety.
The power consumption of 1.5 W (max.) indicates an energy-efficient design, contributing to lower operational costs and reduced environmental impact. This module is an ideal choice for enhancing the functionality of your existing industrial control systems while maintaining a high level of reliability and ease of integration.
