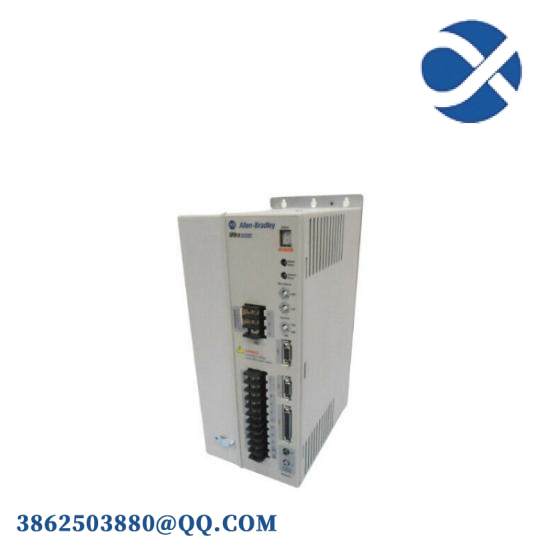

Rockwell Automation Kinetix 6000 HV150 Drives – 2098-DSD-HV150-SE4

Input Voltage (AC):230 to 480 VAC

Nominal Input Current (AC):7 A

Continuous Output Current (A):11 A (0-peak)

Intermittent Output Current (A):22 A (0-peak)

Rotational Speed (rpm):6000 max.

Environmental Conditions:Relative Humidity: 5 to 95%

EMC Directive Compliance:Yes

SERCOS Interface:Supports

Absolute Encoder Compatibility:Yes

Electrostatic Discharge Protection:Yes

Communication Interface:RS232 & RS485 with DeviceNet

Drive Size:9.54 x 14.2 x 5.46 inches (242.2 x 360.7 x 138.7 mm)

    The 2098-DSD-HV150-SE4 Drives Kinetix 6000 series are designed to enhance your industrial automation capabilities, featuring advanced control algorithms for optimized performance.

    These drives are engineered to seamlessly integrate with Allen-Bradley’s ControlLogix Programmable Automation Controller (PAC) platform and SOFTLogix controller through the robust SERCOS communication protocol, ensuring reliable and efficient operation.

    With a compact yet robust design, these drives deliver high torque and precision, making them ideal for applications requiring dynamic control and efficiency, from machine tools to material handling systems.

    Equipped with advanced indexing features, they support complex motion profiles and enable smooth transitions between different operations, improving productivity and reducing downtime.

    The 2098-DSD-HV150-SE4 drives come with a high-capacity AC line filter, which must be installed between the power source and the drive input, ensuring stable operation and protecting against power fluctuations.
