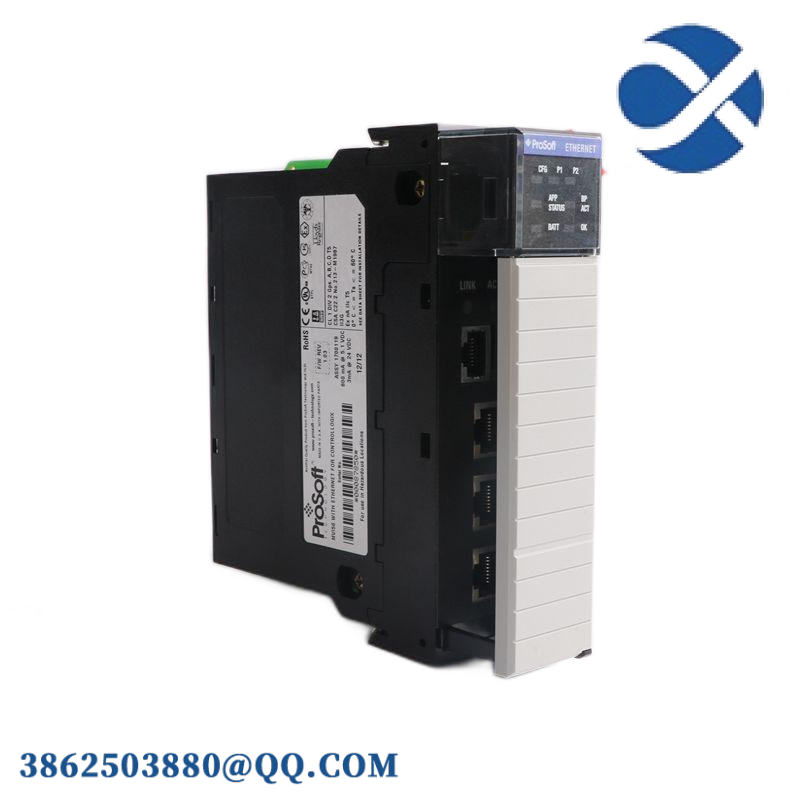

Prosoft MVI56E-MCMXT – Advanced Master Network Interface Module

Product Type:Master Network Interface

Model:MVI56E-MCMXT

Manufacturer:Prosoft

Processor Compatibility:Rockwell Automation SLC 5/02 M0/M1 capable processors or newer

Storage Temperature Range:-40° C to 85° C

Operating Temperature Range:0° C to 60° C

Ethernet Speed:10/100 Mbps

Configuration Method:Through Debug port and user configuration file

Flexibility:User-definable module data memory mapping of up to 5000, 16-bit registers

Backward Compatibility:Single-Slot ControlLogix backplane compatible

Ethernet Configuration & Application Port:10/100 Mbps auto crossover detection, Ethernet configuration and application port

EtherNet/IP Pass-Through Communication:CIPconnect-enabled network configuration and diagnostics monitoring using ControlLogix 1756-ENxT and 1756-CNB modules

    The Prosoft MVI56E-MCMXT module is designed for seamless integration into existing industrial control networks, enhancing system performance with its advanced network capabilities.

    This module supports up to 30 clients and 20 servers, making it ideal for complex, multi-server applications where reliability and speed are critical.

    It minimizes the impact on other server communications by efficiently managing network traffic, ensuring uninterrupted operation even when a server device experiences downtime.

    With its server capability, it allows direct access from Human Machine Interfaces (HMIs), Supervisory Control and Data Acquisition (SCADA) systems, or Distributed Control Systems (DCS), streamlining the control room setup and reducing complexity.

    Integrated with RSLogix 5000, this module offers enhanced functionality without requiring additional Programming and Control (PAC/PLC) programming, making it accessible to a broader range of users.

    The MVI56E-MCMXT boasts a user-definable data memory mapping, allowing for up to 5000, 16-bit registers, providing ample space for storing and processing data within your industrial automation systems.
