Compatibility:1769 backplane compatible
Memory Access:Processor memory access for data transfer
Data Transfer Method:Ladder Logic for data transfer
Configuration:Configurable via ProSoft Configuration Builder Software
Network Support:Supports complete Master specifications according to IEC 61158
Acyclic Transfer:Class 1 or Class 2 DPV1 services for acyclic parameter data transfer
Communication Protocol:Profibus DPV0/V1 protocol compatibility

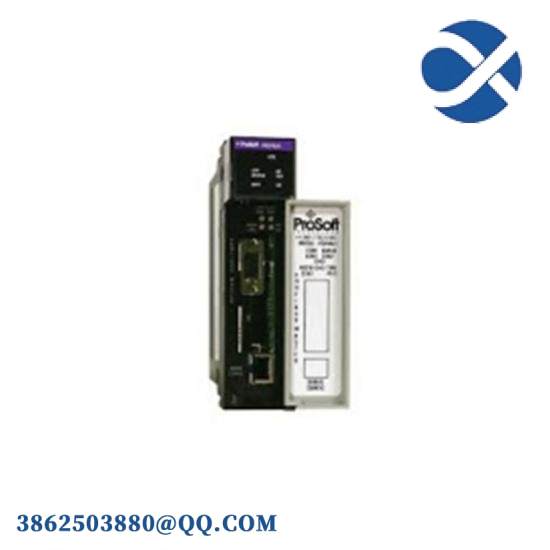

The ProSoft MVI56-PDPMV1 module is meticulously designed to optimize communication within industrial environments, ensuring reliability and efficiency in data exchange between the PROFIBUS network and ControlLogix processors.
With its single-slot design, it seamlessly integrates into existing 1769 backplane systems, offering an expanded footprint without compromising system integrity.
As an Input/Output module, it grants direct access to processor memory, facilitating rapid data transfer between the module and the central processing unit, thereby enhancing operational efficiency.
Leveraging Ladder Logic, the module enables seamless interaction between the internal memory and processor controller tags, providing a user-friendly interface for programming and monitoring.
Configurable through ProSoft Configuration Builder Software, this module allows for tailored setup of PROFIBUS networks, accommodating diverse automation requirements and ensuring compatibility with various devices.
