Application Voltage:250V AC
Operating Temperature Range:-40°C to +85°C
Output Current:15A peak
Input/Output Channels:4 x PWM
Communication Interface:RS-485
Board Size:125mm x 65mm

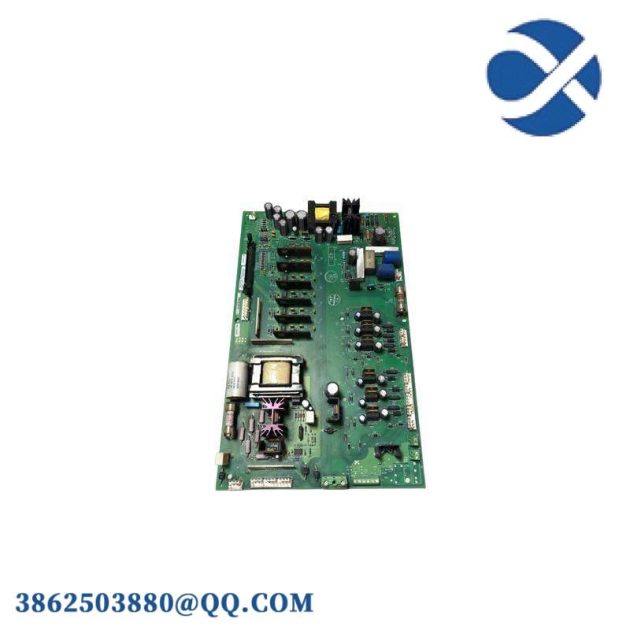

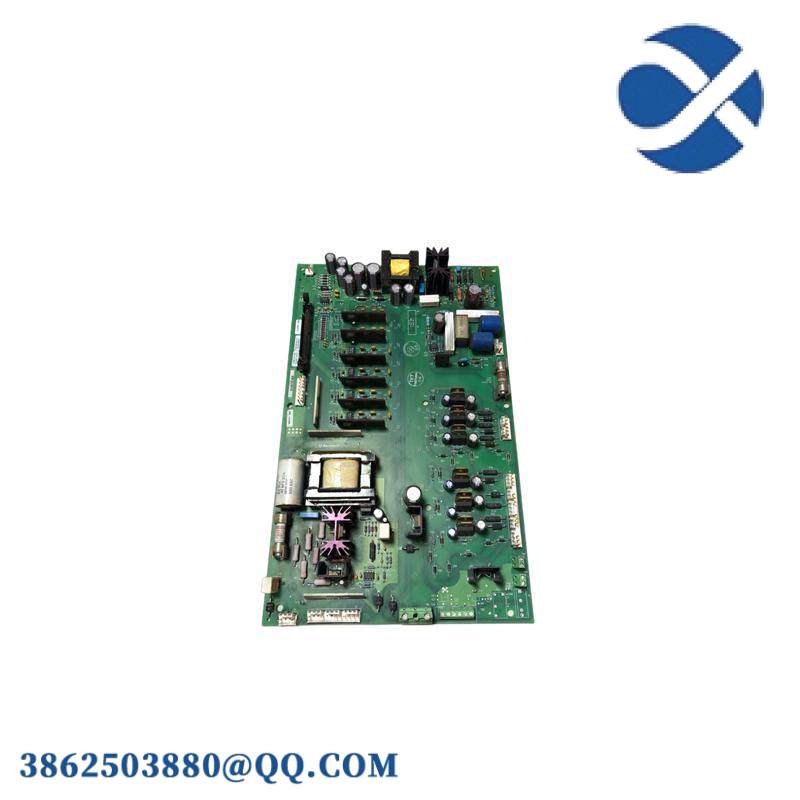

The MAXON 1336-BDB-SP30D is engineered to provide superior performance in industrial control applications, ensuring reliable operation even under extreme conditions. Its robust design and advanced features make it an ideal choice for power-intensive systems requiring precise control and stability.
Featuring a high current rating of 30A at 12VDC, this PCB gate drive board is capable of handling significant loads without overheating or degradation in performance. It is designed with a wide operating temperature range from -40°C to +125°C, making it suitable for use in a variety of industrial settings, including harsh environments like manufacturing floors and extreme climates.
With an input voltage range of 6VDC to 15VDC, the board offers flexibility in power supply options, allowing for seamless integration into different industrial systems. Its exceptional current efficiency of 95% ensures minimal energy loss, enhancing overall system performance and reducing operational costs.
Measuring 136mm x 60mm, the board’s compact size facilitates easy installation and integration into existing control systems. The Surface Mount Device (SMD) package type enables efficient assembly processes, further streamlining production lines and reducing manufacturing costs.
In addition to its technical capabilities, the MAXON 1336-BDB-SP30D is designed with user convenience in mind. It includes protective measures against overvoltage, overcurrent, and short-circuit scenarios, safeguarding the board and connected components from damage. This comprehensive protection ensures uninterrupted operation and minimizes downtime, contributing to higher productivity and efficiency in industrial applications.
