Power Supply Voltage:90 to 300 VDC; 70 to 265 VAC at 48 to 62 Hz
Control Power Range:90 to 300 VDC; 70 to 265 VAC at 48 to 62 Hz
Number of Windings Per Phase:3
Analog Output Maximum Load:10 kΩ at 0 to 1 mA, 600 Ω at 4 to 20 mA
Maximum Continuous Voltage Output:273 V
Display:40 character Enhanced LCD
Dimensions:Height: 9″; Width: 7 ⅛”; Depth: 7″
Case Material:Durable, heat-resistant material
Protection Features:Dynamic CT Ratio Mismatch Correction, Overexcitation Protection, Transformer Overload Protection, Frequency Rate-of-Change Detection, Hottest Spot Monitoring

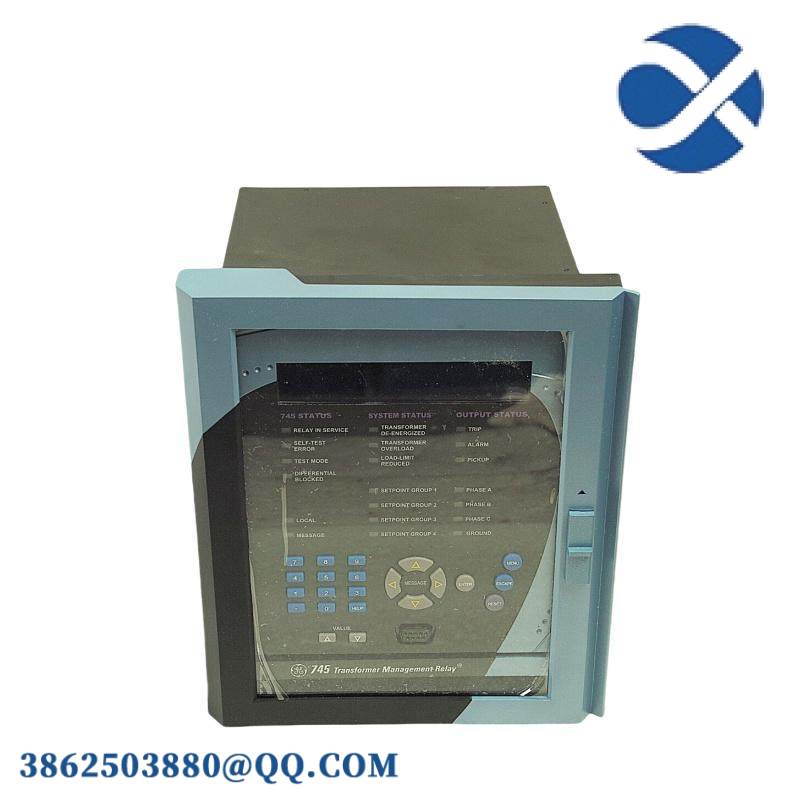

The GE SR745 CASE 745-W2-P5-G5-HI-T is engineered to enhance system longevity and reliability through advanced monitoring and protection mechanisms. Its enhanced LCD display provides clear, intuitive status information, aiding technicians in quick decision-making.
With its high-resolution display and expanded keypad, this relay simplifies the process of setting parameters and monitoring data, ensuring operators can efficiently manage transformer operations without delays.
Featuring robust protection features, including dynamic CT ratio mismatch correction and overexcitation protection, this relay safeguards against potential failures, reducing downtime and maintenance costs.
Designed for easy integration into existing systems, the GE SR745 CASE 745-W2-P5-G5-HI-T is compatible with a wide range of industrial settings, offering a versatile solution for transformer management.
Built with user-friendliness in mind, this relay comes equipped with LEDs on its front panel for real-time status alerts and error notifications, allowing for proactive system maintenance and minimizing operational disruptions.
