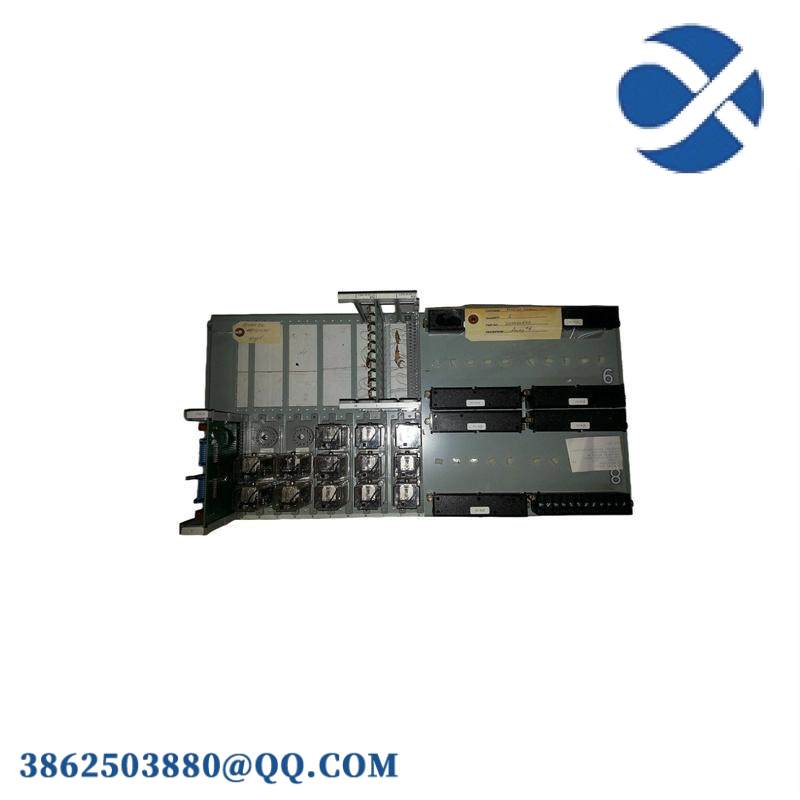

GE DS4820R40 (194B5706G1) Relay Module

Manufacturer:General Electric

Model:DS4820R40

Series:(194B5706G1)

Module Type:Relay

Operating Voltage Range:24 VDC

Relay Contacts:1 Form C (SPST)

Load Capacity:10 A at 24 VDC

Operating Temperature:-40°C to +70°C

Humidity Range:5% to 95% non-condensing

Enclosure Rating:IP20

Connection Type:Terminal Block

Communication Compatibility:Supports DeviceNet and ControlNet

    The GE DS4820R40 (194B5706G1) Relay Module boasts a compact design, ensuring efficient space utilization in industrial control systems. It is equipped with robust SPDT (Single Pole, Double Throw) relays that offer unparalleled reliability and longevity in harsh environments.

    This relay module is rated for a maximum operating voltage of 24 VDC, making it suitable for a wide range of applications within the industrial automation sector. The contact rating of 10 A at both 250 VAC and 30 VDC ensures it can handle high current loads without compromising performance.

    Featuring a maximum switching speed of ≤ 1 ms, this module ensures quick response times, which is critical in fast-paced industrial processes. Its temperature range of -20°C to +70°C allows it to operate effectively in extreme conditions, further enhancing its versatility.

    Designed with safety in mind, the GE DS4820R40 (194B5706G1) Relay Module complies with IP20 protection class standards, safeguarding against dust and light splashes. This makes it an ideal choice for industrial environments where dust and moisture are common.

    Ease of integration and maintenance are further highlighted by its user-friendly design. The module is compatible with popular industrial control systems, simplifying installation and reducing downtime. With its combination of reliability, efficiency, and compatibility, the GE DS4820R40 (194B5706G1) Relay Module is an indispensable component in modern industrial automation setups.
