Manufacturer:General Electric
Series:Mark V

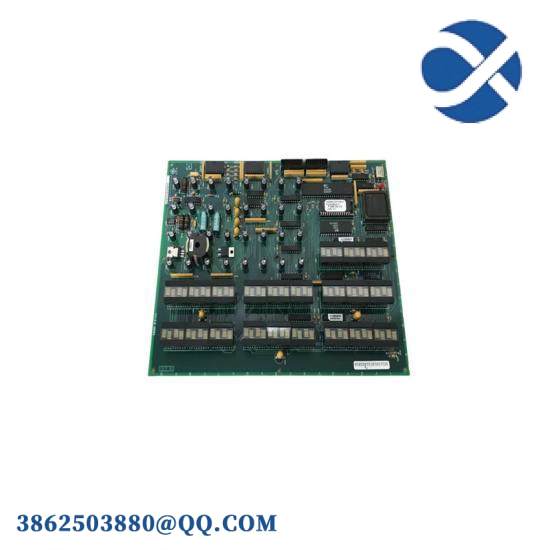

Part Number:DS200KLDCG1AAA
Functional Description:LED/Key/Display Board
Functional Acronym:KLDC
PCB Coating:Normal Coating
Revisions:Quantity 3
Backwards-Compatibility:First two revisions
Assembly Type:Normal Assembly
Board Connectors:Two vertical pin components
Jumper Switches:Two
Capacitors, Diodes, Resistors:Provided for voltage limiting and consumption
LED Displays:Seven 4-digit displays
Codes:C-ESS, 6BA01
Board Dimensions:Not specified
Material:Not specified
Weight:Not specified
The DS200KLDCG1AAA is an essential part of the GE Mark V Turbine Control System, designed to enhance operational efficiency and safety in industrial settings.
Equipped with 32 LEDs and twenty-one 4-character displays, this board offers a comprehensive overview of system performance, making it indispensable for maintenance and monitoring tasks.
Featuring a normal coating for durability and reliability, this PCB ensures consistent performance under challenging industrial conditions.
With the option to customize behavior through a single jumper switch, users can tailor the display’s function according to specific operational needs, enhancing adaptability and flexibility.
Comprehensive documentation accompanies the DS200KLDCG1AAA, guiding users through its setup, usage, and maintenance processes, ensuring seamless integration into existing systems.
