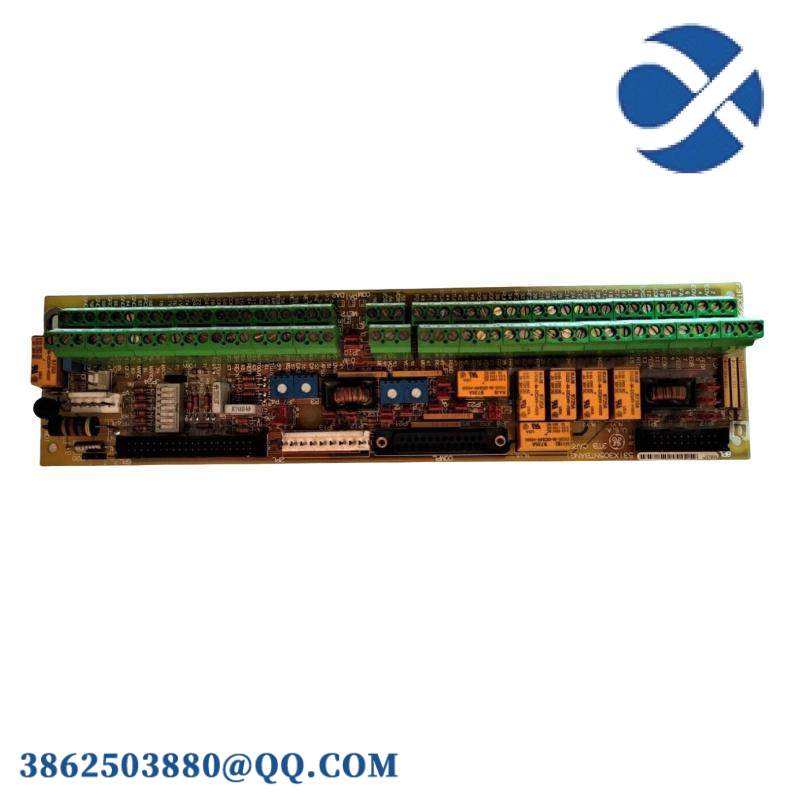

Product Type:Terminal Board
Model Number:531X305NTBANG1
OEM Manufacturer:GE Motors and Industrial Systems
Instruction Manual:GEI-100020B (Supersedes GEI-100020A)
Series:531X
Weight:0.44 kg
Power Consumption:Regulated supplies: 5 VDC 100mA / 15 VDC 100mA; Unregulated supplies: 24 VDC 120mA / 125 VAC
Number of Channels:4
Relay Outputs:7 (Form A or Form C)
Contact Rating:120 VAC
The GE 531X305NTBANG1 Terminal Board is meticulously designed for seamless integration into high-demand industrial automation environments. Its compact yet robust design ensures longevity and reliability under harsh conditions.
This advanced terminal board supports both regulated and unregulated power supplies, providing flexibility for various applications. The ability to configure encoders using onboard jumpers enhances its adaptability to diverse systems.
Equipped with seven relay outputs, the board offers versatile control options, supporting form A or form C connections. Each relay contact boasts a rating of 120 VAC, ensuring reliable operation in demanding scenarios.
The inclusion of low-level analog input/output capabilities, scaled through four potentiometers, enables precise control over auxiliary devices. This feature is particularly advantageous in applications requiring fine-grained adjustments.
In addition to its technical prowess, the GE 531X305NTBANG1 is designed with ease of installation and maintenance in mind. Its comprehensive installation parameters and user-friendly interface facilitate quick setup and ongoing management.
