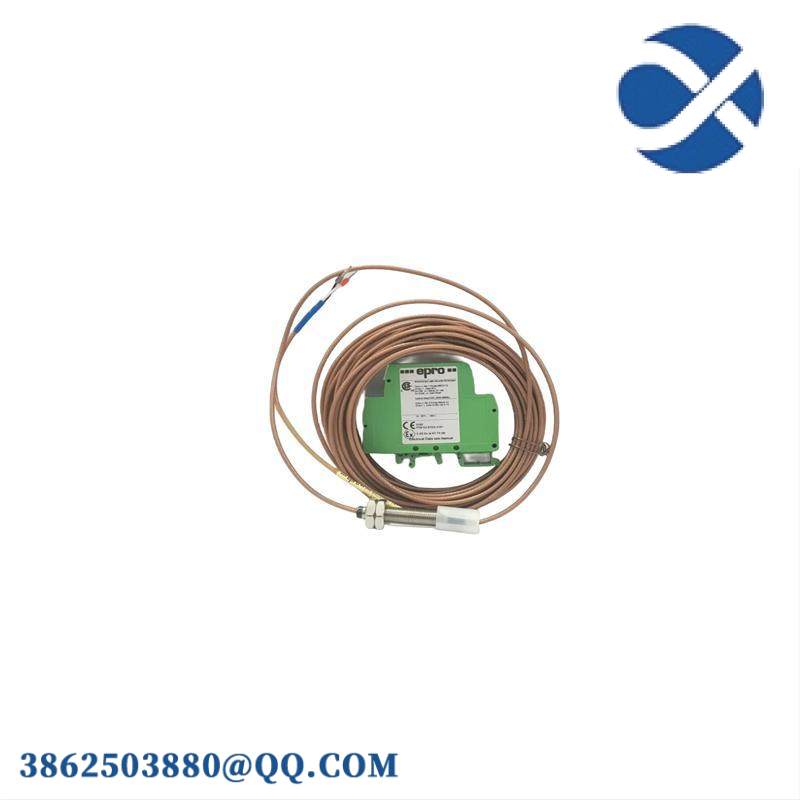

EPRO PR6423/005-031-CN CON041-CN Eddy Current Sensor

Sensor Type:Eddy Current

Model Number:PR6423/005-031-CN

Component Type:CON041-CN

Measuring Range:±3mm

Resolution:0.01mm

Temperature Range:-20°C to +85°C

Accuracy:+/-0.05%

Operating Voltage:DC 5V to 24V

Output Signal:TTL/PNP

Response Time:≤1ms

Weight:0.27kg

Dimensions:95x65x35mm

    Introducing the EPRO PR6423/005-031-CN CON041-CN Eddy Current Sensor, designed for critical industrial applications requiring exceptional accuracy and durability. This sensor is meticulously engineered to withstand harsh environments, ensuring reliable performance day after day.

    With a measuring range from ±1.0 mm (.04 in) in static conditions to dynamic measurements up to 500 μm (20 mils), it provides precise material identification and distance measurement capabilities essential for advanced automation systems.

    Featuring an innovative design that minimizes temperature errors to ±200 mV per 100˚ K, the EPRO sensor ensures high accuracy under varying environmental conditions. The zero point calibration ensures consistent readings, enhancing operational efficiency.

    The linear measurement range extends to 2 mm (80 mils) with a precise initial air gap of 0.5 mm (20 mils), making it ideal for applications requiring fine control over distances and material separation.

    Crafted from high-grade stainless steel, the EPRO PR6423/005-031-CN CON041-CN sensor boasts exceptional resistance to corrosion and wear, ensuring longevity and maintenance-free operation in even the most demanding industrial settings.
