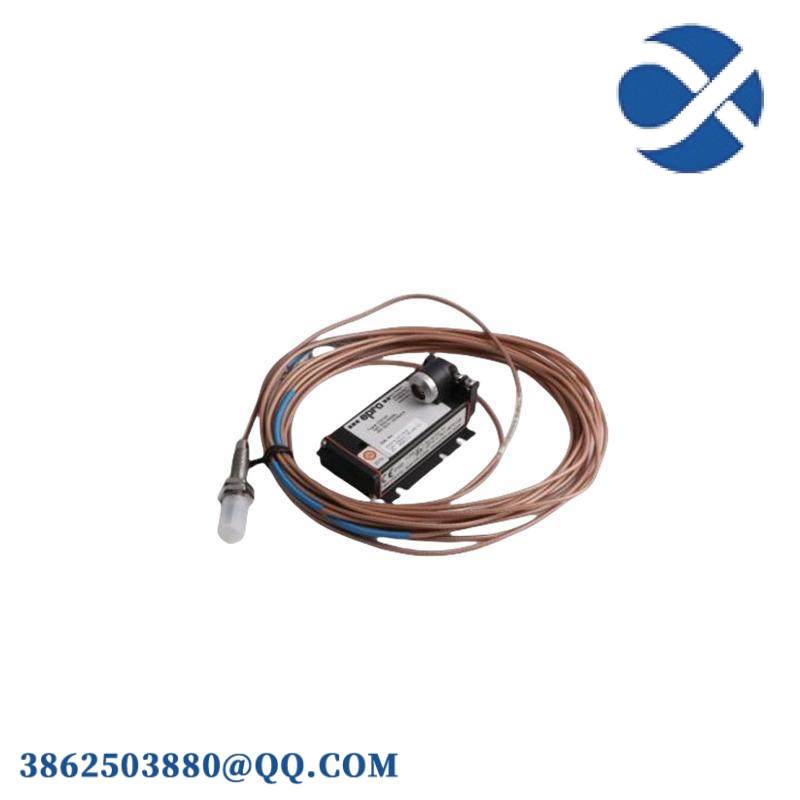

EPRO CON041 PR6423/002-011 9200-00021N: Advanced Eddy Current Sensor

Sensor Type:Eddy Current

Model:PR6423/002-011

Series:CON041

Material:Stainless Steel

Operating Temperature Range:-40°C to +125°C

Output Type:4-20 mA

Measuring Range:±500 μm (±0.02 in)

Resolution:1 μm

Accuracy at Zero Point:±0.5%

Repeatability:±0.2%

Power Supply:DC 10 V to 35 V

Current Consumption:Max. 10 mA

Protection Class:IP67/IP68

Dimensions (Length x Width x Height):100mm x 50mm x 30mm

    This sensor is engineered for applications requiring precise non-contact measurement of metal surfaces, offering exceptional reliability and accuracy even in challenging conditions.

    Equipped with advanced eddy current technology, it provides highly stable readings, minimizing the risk of wear or damage over time.

    The compact design and robust IP67 protection make it suitable for use in harsh industrial environments, including wet or dusty settings.

    With its fast response time, this sensor ensures immediate feedback in automated systems, enhancing overall system efficiency.

    The sensor’s compatibility with various power supplies makes it versatile for integration into existing machinery, reducing installation complexity and downtime.

    Designed for long-term durability, it requires minimal maintenance, ensuring continuous operation without frequent adjustments or replacements.
