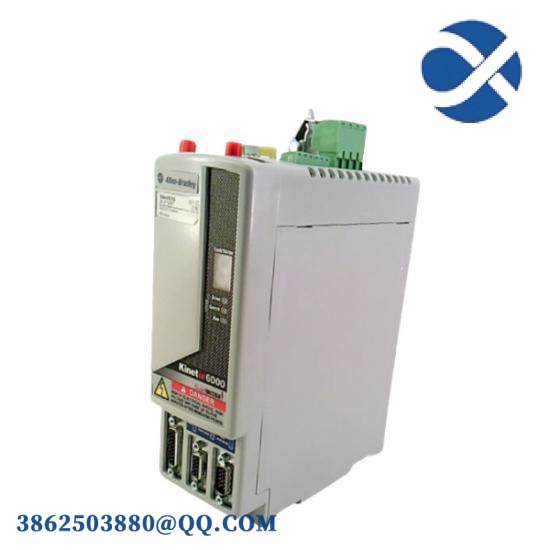

Allen-Bradley Kinetix 6000 Series 2094-AM02-S Axis Module

Module Type:Axis Module

Series:Kinetix 6000

Efficiency:0.98

Continuous Current (rms):10.6 A

Continuous Current (0-peak):15.0 A

PWM Frequency:4 kHz

Bandwidth Velocity Loop:500 Hz

Internal Shunt Continuous Power:N/A

Internal Shunt Peak Power:N/A

Nominal Input Voltage:325 Volts DC

Shunt On:N/A

    Engineered for precision and durability, the Allen-Bradley Kinetix 6000 Multi-Axis 2094-AM02-S Axis Module is a cornerstone of advanced industrial motor control systems. Its compact design houses a powerhouse of functionality, delivering unparalleled efficiency and performance.

    Featuring a continuous current of 10.6 Amperes and a peak current capability of 15.0 Amperes, this module ensures smooth operation under demanding conditions without compromising on power. Its impressive 4 kHz PWM frequency guarantees rapid response times, essential for high-speed applications.

    With a bandwidth velocity loop frequency of 500 Hz, it optimizes control dynamics for precise motor movements. Integrated into the Kinetix 6000 multi-axis drive system, it seamlessly interfaces with a wide range of rotary and linear motors through feedback cables, enhancing system flexibility and compatibility.

    Crafted with robust materials for long-lasting performance, this axis module is designed to withstand the rigors of industrial environments. Its efficient power management capabilities contribute to reduced energy consumption, aligning with sustainable manufacturing practices.

    For users seeking enhanced operational safety, the 2094-AM02-S Axis Module is equipped with an internal shunt circuit, providing critical protection against electrical hazards. Additionally, its compatibility with Allen-Bradley’s Logix platform ensures seamless integration into existing automation systems, streamlining the setup process and enhancing productivity.
