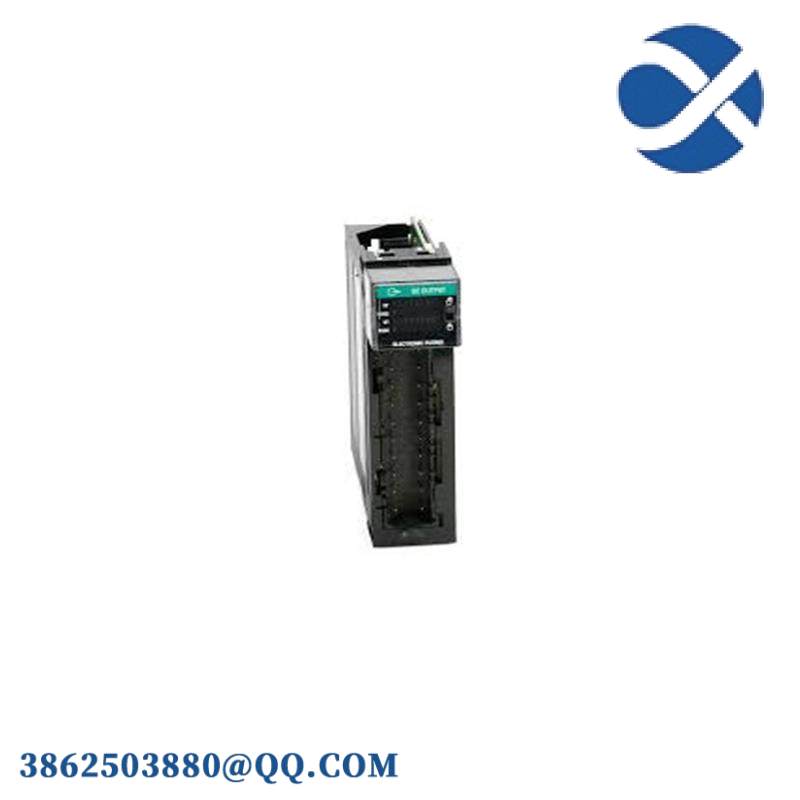

Allen Bradley AB 1756-OB16E/A ControlLogix 16 Point Digital Output Module

Model Type:High Capacity IP Module

Manufacturer:Allen Bradley

Product ID:1756-OB16E/A

ControlLogix Product Type:Digital DC output

Number of Outputs:16

Output Voltage Range:10-31.2 VDC

Nominal Output Voltage:24 VDC

Electronically Fused Voltage:12-24 Volts DC

Mounting:Chassis

Communication Speed:10/100 MBPS

Communication Protocol:Ethernet/IP Bridge

Enclosure Type:Open Type

Connection Cables:802.3 Compliant Shielded or Unshielded Twisted Pair

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration:2 G

Shock:30 G

Interface:Ethernet

USB Port:Present

    Engineered with advanced technology, the Allen Bradley 1756-OB16E/A ControlLogix module ensures seamless integration into complex industrial automation systems.

    Each 16-point digital output is electronically fused, providing enhanced safety and protection against short circuits.

    Operating within a wide temperature range of 0 to 60 degrees Celsius, this module is suitable for a variety of industrial settings, ensuring reliable performance year-round.

    With an impressive power dissipation of 5.1 watts, it efficiently manages heat generation, reducing the risk of overheating in high-load applications.

    Equipped with Ethernet/IP Bridge communication protocol, the module supports seamless data exchange with other devices in the network, enhancing operational efficiency and flexibility.
