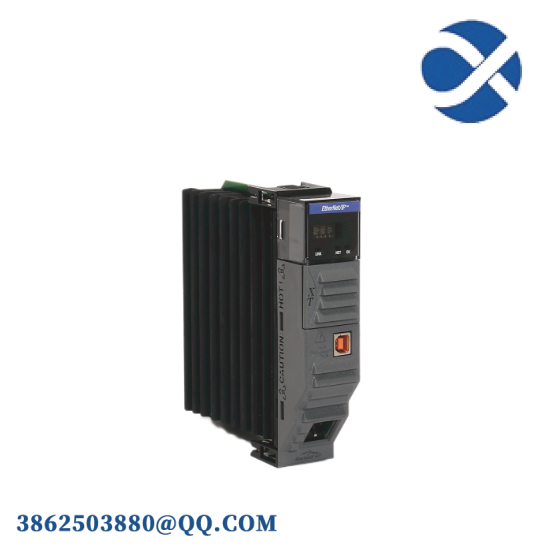

Allen-Bradley 1756-EN2TXT ControlLogix Bridge Module: Enhancing Network Connectivity & Scalability in Industrial Automation

Model Type:Bridge Module

Model Number:1756-EN2TXT

Manufacturer(s):Allen-Bradley

Communication Protocol:Ethernet/IP

Communication Speed:10/100 MBPS

Mounting:Chassis

Power Supply:3 MA At 24 VDC

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Enclosure:Open Type

Connection Cables:802.3 Compliant Shielded Or Unshielded Twisted Pair

    Engineered for durability and reliability, the Allen-Bradley 1756-EN2TXT ControlLogix Bridge Module is a critical component in industrial automation systems. This module is specifically designed to provide robust data transmission capabilities between ControlLogix systems and EtherNet/IP networks, ensuring smooth operation and seamless integration.

    With its high-speed Ethernet/IP bridge functionality, the 1756-EN2TXT facilitates efficient data flow and reduces the complexity of network setup, making it an indispensable tool for optimizing industrial processes. Its compact size and rugged design allow for easy integration into existing systems without compromising on performance.

    The module supports both single-ended and differential input configurations, offering flexibility to accommodate various types of sensors and signals. This versatility ensures compatibility with a wide range of industrial equipment, enhancing the adaptability of your automation solutions.

    The 1756-EN2TXT is equipped with advanced isolation and noise suppression technologies, ensuring reliable operation in harsh industrial environments. It can withstand demanding conditions such as vibration and shock, guaranteeing consistent performance even under extreme circumstances.

    Ease of use and maintenance are further enhanced by its straightforward installation process and user-friendly interface. Whether you’re upgrading existing infrastructure or building new systems, this module offers a simple yet powerful solution to streamline your industrial automation needs.
