Manufacturer:Allen Bradley
Model Number:1747-L542
Memory:32 KB
Backup:Flash
Interface:DH+ And RS-232 Ports
Mounting:Chassis
Backplane Output:1 MA at 5 VDC
Response Time:Typical Scan: 0.9 MS/Kword
Bit Execution:0.37 MIC-SEC
I/O Scan:0.255 MS
Programming Devices:RSLogix 5000 Software
Enclosure:Open Type
Display:Status LEDs
Dimensions:Length: 145 MM, Width: 35 MM, Height: 142 MM
Temperature Rating:0 – 60 DEG C
Environmental Conditions:5 – 95% Non-Condensing Humidity
Shock:30 G
Vibration:0.015 IN (Displacement), 2.5 G (Acceleration)
Certifications:GOST certified, KC certified, MARINE certified, UL listed, cUL listed, CE marked, C-Tick certified

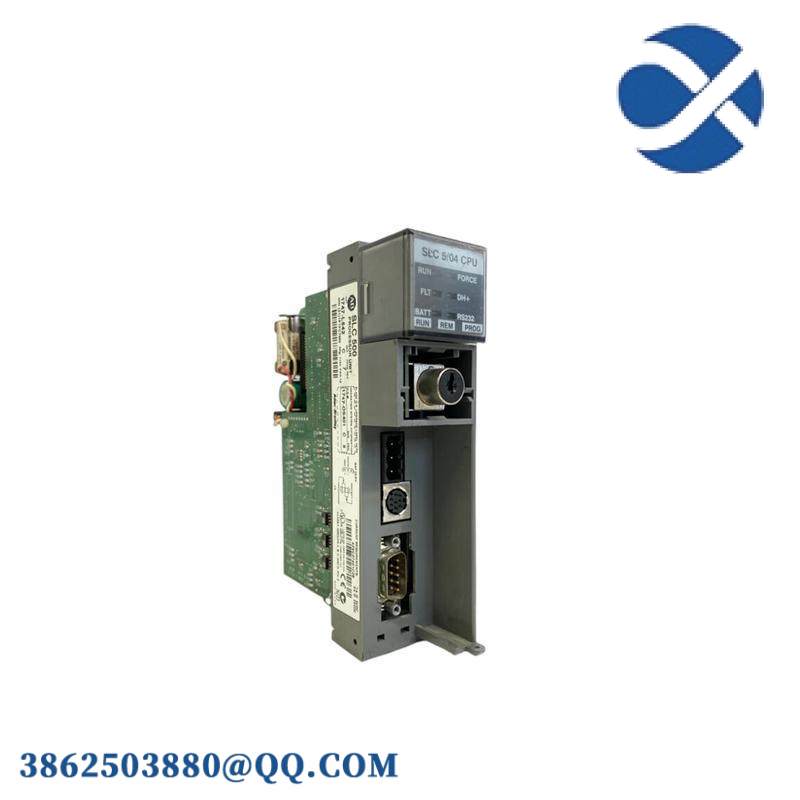

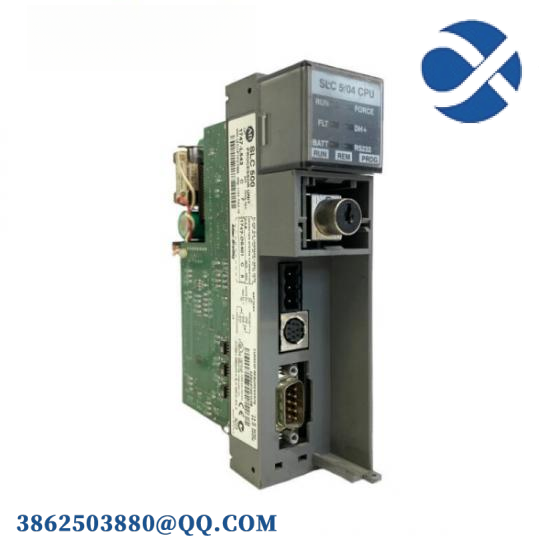

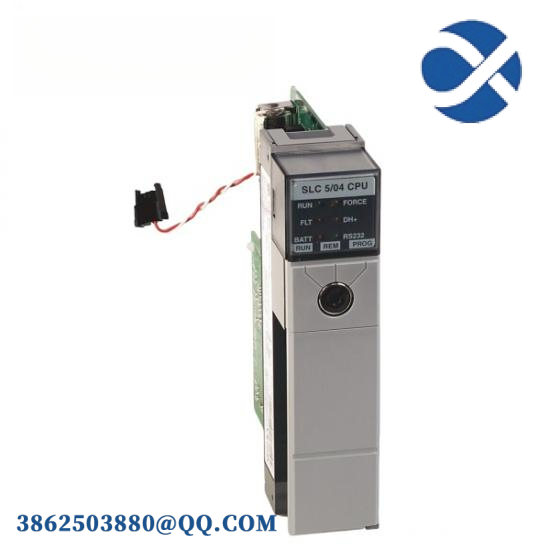

The Allen Bradley 1747-L542 SLC 5/04 Modular Processor Unit is a high-performance, reliable controller designed for a wide range of industrial automation applications. Its modular design allows for flexible configuration and easy integration into existing systems. With a memory capacity of 32 KB, this processor unit can handle complex control tasks efficiently.
The device features both DH+ and RS-232 communication interfaces, ensuring seamless connectivity with other devices and systems. The backplane output of 1 MA at 5 VDC provides sufficient power for connected modules. With typical scan times of 0.9 MS per Kword, bit execution times of 0.37 μSEC, and I/O scan times of 0.255 MS, the 1747-L542 offers fast and accurate data processing capabilities.
The open-type enclosure with status LEDs makes it easy to monitor system health and diagnose issues quickly. The compact dimensions (145 MM x 35 MM x 142 MM) make it suitable for space-constrained environments. Operating within a temperature range of 0 – 60 DEG C and humidity levels of 5 – 95%, this processor unit is built to withstand harsh industrial conditions.
Certified by multiple international standards such as GOST, KC, MARINE, UL, cUL, CE, and C-Tick, the Allen Bradley 1747-L542 is a trusted solution for industrial control systems. It is ideal for use in material handling, HVAC control, assembly operations, small process control, and SCADA systems.
