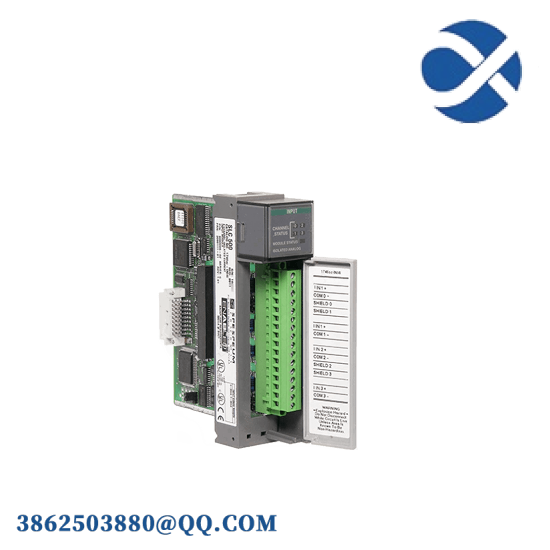

Allen Bradley 1746sc-INI4vi Analog Input SLC 500, Precision Industrial Control Module

Model Type:SLC 500

Model Number:1746sc-INI4vi

Number of Channels:4

Input: Common Mode Voltage Range:-20 To 20 V

Absolute Input Voltage:Plus/Minus 7.5 VDC Or 7.5 VAC RMS (Maximum)

Input Range:-10 To 10 VDC – 1 LSB

Absolute Input Current:-30 To 30 MA (Maximum)

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Current Rating:Backplane Current Draw: 35 MA At 5 V, 85 MA At 24 V

Isolation:Backplane: 500 VDC, Enclosure: Open Type

    Engineered for unparalleled precision, the Allen Bradley 1746sc-INI4vi analog input module offers unmatched accuracy in data acquisition, essential for optimizing industrial processes.

    Featuring a common mode voltage range from -20 to 20 V, this module ensures reliable signal handling across diverse industrial environments.

    With support for both 7.5 VDC and 7.5 VAC RMS absolute input voltages, it caters to a wide array of industrial standards, enhancing its compatibility and versatility.

    Designed with an input range from -20 to 20 MA, the 1746sc-INI4vi is capable of handling precise current measurements, critical for high-fidelity data capture in industrial automation.

    Equipped with overvoltage protection of 7.5 VAC RMS, the module safeguards against electrical spikes, ensuring robust performance in demanding conditions.

    Operating within a temperature range of 0 to 60 DEG C, this module is suitable for a broad spectrum of industrial applications, from cold storage facilities to hot manufacturing plants.
