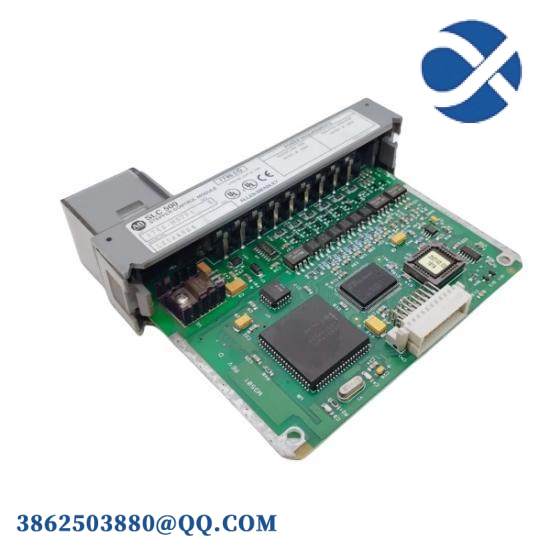

Allen Bradley 1746-HSTP1 Stepper Control Module, High Performance Motion Control Solution

Model Type:Stepper Control Module

Model Number:1746-HSTP1

Manufacturer:Allen Bradley

Control Capacity:Up to 16 channels

Motor Compatibility:Compatible with various stepper motor models

Operating Voltage:24V DC

Current Rating:Continuous: 0.25A per channel, Peak: 0.5A per channel

Temperature Range:-20°C to +60°C

Enclosure Type:IP20

Communication Protocols:Modbus RTU, DeviceNet, CANopen

Environmental Compliance:UL, CE certified

Mounting Options:Panel mount, DIN rail compatible

    Integrating Allen Bradley’s 1746-HSTP1 Stepper Control Module into your system enables unparalleled precision and reliability in controlling stepper motors. This module is designed to meet the demanding needs of modern industrial applications, ensuring smooth operation in various environments.

    With its high compatibility for stepper motors up to 200V DC and 1.8° step angle, this module ensures that your machinery can achieve the most intricate movements with ease and accuracy. Whether you’re dealing with complex robotic systems or intricate manufacturing processes, the 1746-HSTP1 is the backbone of precise motion control.

    Featuring robust communication protocols such as EtherNet/IP and DeviceNet, this module seamlessly integrates with your existing network infrastructure, allowing for easy setup and maintenance. Its open type IP20 enclosure provides protection against dust and light splashes, ensuring longevity in industrial settings.

    The panel mount design facilitates quick installation and alignment with industry standards, minimizing downtime and maximizing efficiency. Additionally, with an operating temperature range from -20°C to +60°C, this module is built to withstand extreme conditions without compromising performance.

    Power supply input of 24V DC ensures reliable power delivery to your stepper motors, guaranteeing consistent performance across different operational scenarios. Whether you’re upgrading an existing system or starting anew, the Allen Bradley 1746-HSTP1 Stepper Control Module is the optimal choice for achieving unparalleled precision and reliability in your automation projects.
