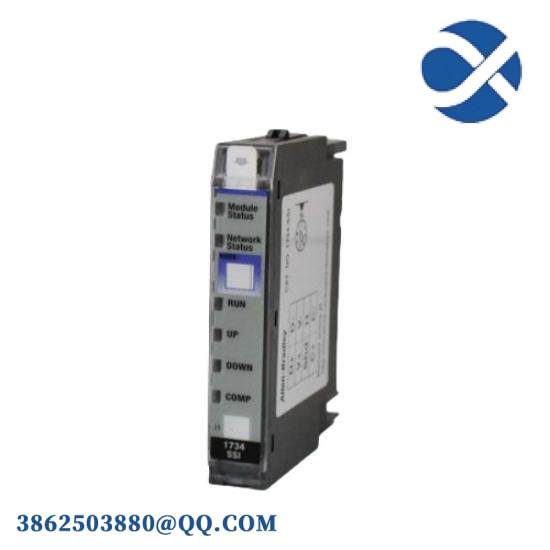

Advanced 1734-SSI Encoder Input Module – Enhancing Industrial Control Systems Efficiency

Manufacturer:Allen-Bradley

Model:1734-SSI

Product Type:Absolute Encoder Input Module

Channels:1 SSI channel

Protocol Support:SSI protocol

Wiring Base:Requires 1734-TB or 1734-TBS

Backplane Current Draw:110 mA @ 5V DC

Temperature Rating:-20°C to 55°C

Environmental Conditions:Storage -40°C to 85°C, Relative Humidity 5% to 95% non-condensing, Vibration 5G at 10Hz to 500Hz, Operating Shock 30G, Non-Operating Shock 50G

Power:5V DC power supply

    Engineered for reliability and precision, the Allen-Bradley 1734-SSI Encoder Input Module offers an efficient solution for data acquisition from absolute encoders supporting the SSI protocol. Its robust design ensures compatibility with a wide range of industrial applications, from machinery control to complex automation systems.

    With its 16-channel capacity, the module efficiently handles both input and output signals, providing real-time feedback essential for operational accuracy. The inclusion of DeviceNet communication protocol enhances interoperability with other Allen-Bradley devices and third-party systems, streamlining the integration process.

    Manufactured using high-quality materials, this module is built to withstand challenging environmental conditions, ensuring longevity and reliability in harsh industrial environments. Its compact size and DIN rail mounting capability make it easy to integrate into existing setups without compromising space.

    The Allen-Bradley 1734-SSI Encoder Input Module is designed with user-friendliness in mind, featuring intuitive configuration options and straightforward installation procedures. Its compatibility with the Allen-Bradley 1734-TB or 1734-TBS wiring base assembly at key switch position 2 ensures a seamless setup process.

    Equipped with advanced features such as temperature resistance and vibration handling, this module operates within specified environmental conditions, ensuring stable performance throughout various industrial operations. Its low power consumption further reduces operational costs while maintaining optimal functionality.
