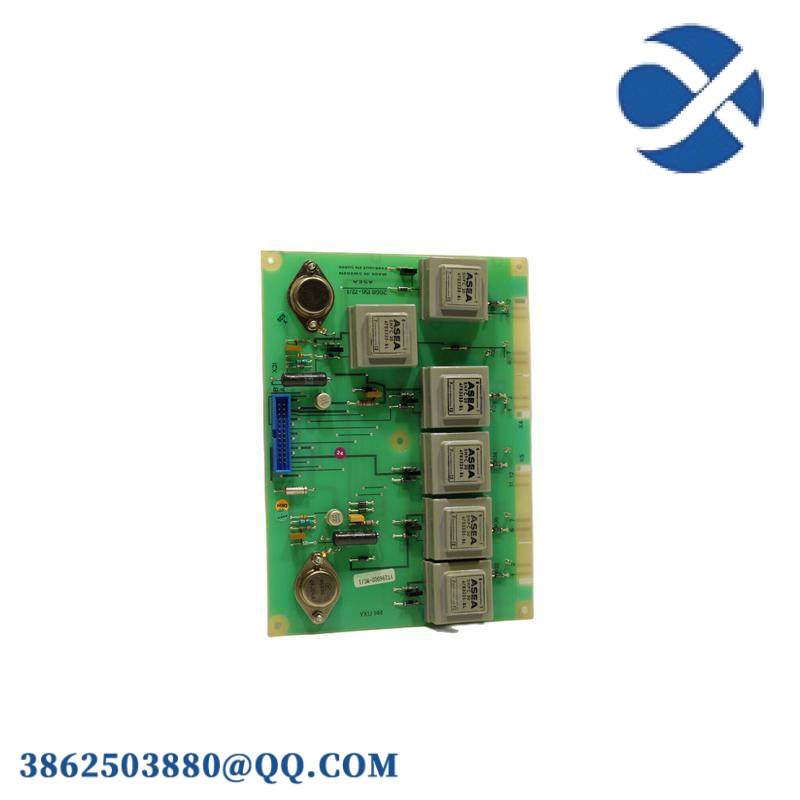

ABB YXU144 YT296000-MC YXU 1440 PULSE TRANSFORMER UNIT – High-Efficiency Pulse Transformer for Industrial Control Systems

Model Number:YXU144 YT296000-MC YXU 1440

Transformer Type:Pulse Transformer

Rated Output Power:296000 VA

Frequency Response:400 Hz

Insulation Class:Class H

Operating Temperature Range:-40°C to +70°C

Enclosure Protection Rating:IP20

Input Voltage Range:380-480 VAC

Output Current Capacity:6000 A

Dimension (LxWxH):350x350x100 mm

Weight:40 kg

    The ABB YXU144 YT296000-MC YXU 1440 Pulse Transformer Unit is a state-of-the-art component designed to enhance the performance of industrial control systems. It offers unparalleled precision in pulse conversion, making it indispensable in applications requiring high accuracy and reliability.

    Featuring an advanced insulation class (Class H), this transformer ensures superior electrical insulation even under extreme conditions, providing a longer lifespan and improved safety in industrial environments.

    With its wide operating temperature range (-40°C to +70°C), the unit is suitable for deployment in various climates, ensuring consistent performance regardless of environmental variations.

    Engineered with robust IP20 enclosure protection, it safeguards against dust and minor water splashes, enhancing durability and reducing maintenance requirements.

    Equipped with a high input voltage range (380-480 VAC) and a significant output current capacity (6000 A), this transformer is capable of handling large power demands, making it a versatile choice for complex industrial applications.
