Dimension (D x H x W):42.7 x 3.5 x 32.2 mm
Operating Temperature Range:-20°C to +60°C
Power Consumption:≤ 1.2W
Data Acquisition Rate:Up to 1 kHz
Accuracy:+/- 0.02% FS
Input Signal Types:Voltage, Current, Frequency, Pulse
Output Signals:Digital and Analog

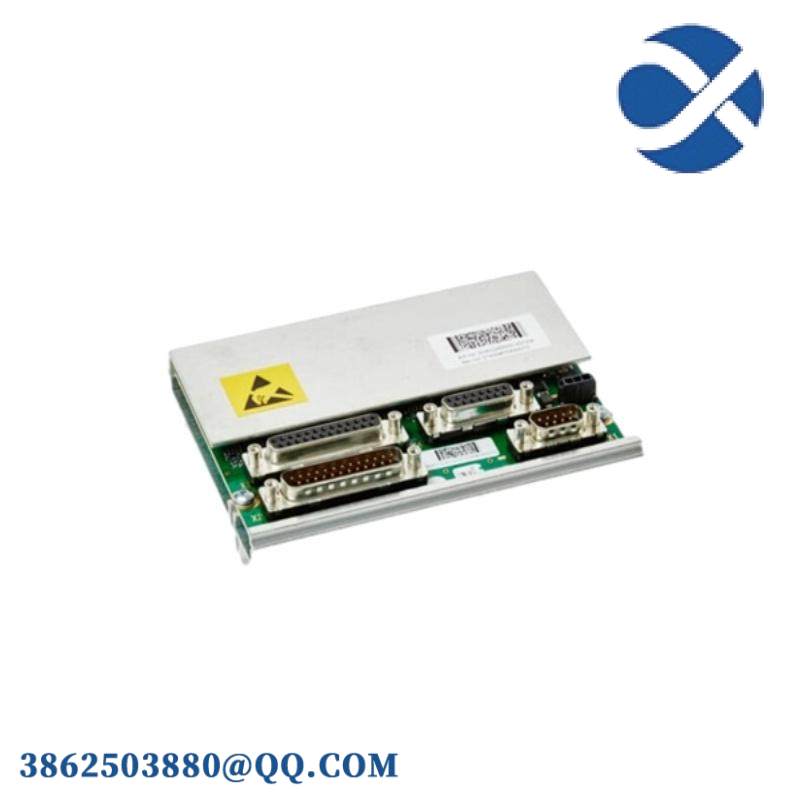

The ABB SMB3HAC042285-001 Serial Measurement Board is engineered with precision for demanding industrial environments. Its robust design ensures reliable performance even under harsh conditions. The board features a high-speed RS485 interface, facilitating seamless integration with various control systems.
With an operating voltage range of 24VDC, this board is compatible with a wide variety of power sources found in modern industrial setups. Its measurement accuracy of +/-0.1% ensures precise data acquisition, critical for process optimization and quality control.
Equipped with a sampling rate of 100Hz, it captures data at a rapid pace, making it ideal for real-time monitoring and control applications. The board’s compact size and lightweight design facilitate easy installation and integration within existing machinery.
Operating within a temperature range of -20°C to +60°C, it is suitable for use in a broad spectrum of industrial climates. Additionally, its storage temperature range of -40°C to +85°C ensures longevity and reliability in varying environmental conditions.
This serial measurement board is not just a component; it’s a solution for enhancing data collection efficiency and improving operational insights in industrial automation. Its compatibility with ABB‘s comprehensive automation suite further enhances its value proposition.
