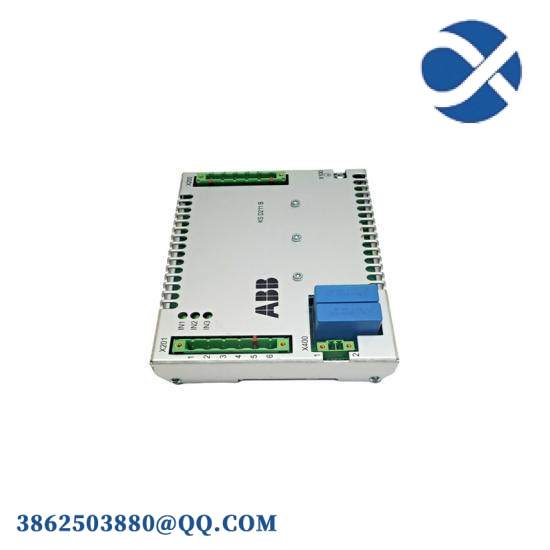

ABB CH-308802, 3BHE022455R1101, Input Coupling Unit

Module Type:Input Coupling

Model Number:CH-308802 3BHE022455R1101

Manufacturer:ABB

Application Compatibility:Industrial Automation

Operating Voltage Range:8…30V DC

Data Transmission Rate:Up to 300Kbps

Number of Channels:16

Signal Types Supported:Analog and Digital Signals

Communication Protocol:DeviceNet, EtherCAT

Operating Temperature:-20°C to +60°C

Enclosure Protection Class:IP20

Dimensions (WxHxD):100mm x 35mm x 95mm

Weight:0.2kg

    The ABB CH-308802 – 3BHE022455R1101 Input Coupling Unit is a highly reliable and accurate device designed for seamless integration into complex industrial automation environments. It is meticulously crafted to handle a wide range of signal types, from voltage to current signals, ensuring high fidelity data conversion.

    Featuring an operating frequency of 10 kHz, this coupling unit ensures fast and responsive data transfer, crucial for real-time process control. Its robust signal range from 0-10 VDC or 4-20 mA accommodates various sensor outputs, making it versatile for different applications across industries.

    With a power supply voltage of 12 to 24 VDC and a current consumption of max. 25 mA, the unit operates efficiently under a wide voltage range, ensuring consistent performance regardless of the power source. Its compact dimensions and lightweight design facilitate easy installation and integration into existing systems.

    Equipped with an IP65 protection class, the ABB coupling unit is designed to withstand harsh industrial conditions, including dust and water splashes. This ensures dependable operation even in challenging environments, reducing downtime and maintenance needs.

    The combination of precision, reliability, and adaptability makes the ABB CH-308802 – 3BHE022455R1101 Input Coupling Unit an ideal choice for enhancing the accuracy and efficiency of industrial control systems.
