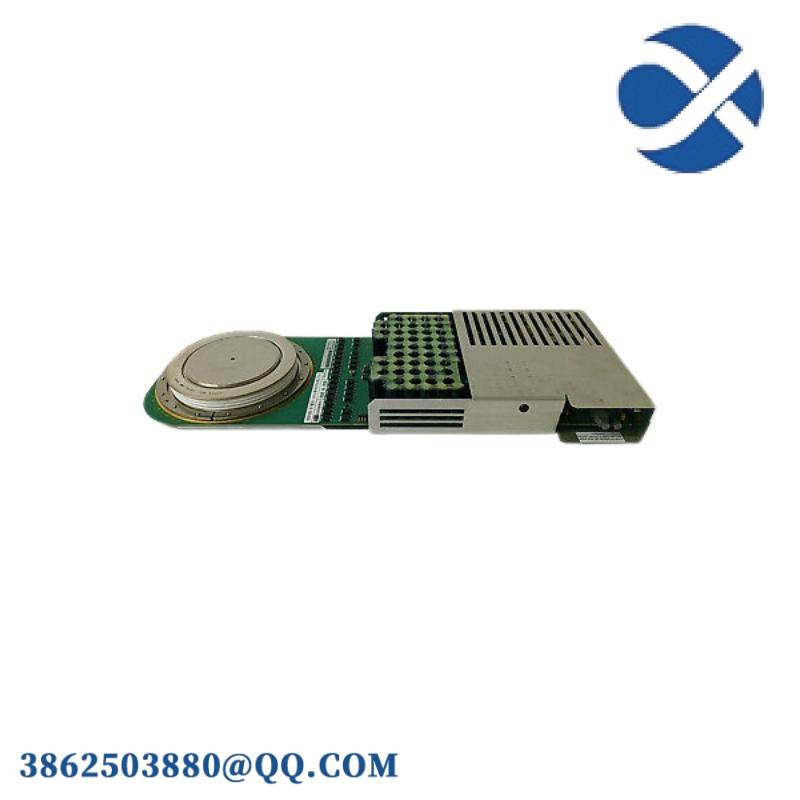

ABB AC10 272001R0101 5SXE 10-0181 5SHY 35L4520 5SGY 35L4520 IGCT Module, High-Performance Power Conversion Solution

Module Type:IGCT

Model Number:AC10272001R0101

Series:5SXE 10-0181, 5SHY 35L4520, 5SGY 35L4520

Rated Current:Variable

Maximum Voltage:High

Cooling Method:Water-cooled

Operating Temperature Range:-40°C to +70°C

Input/Output Connections:Parallel

Weight:Approximately 50 kg

Dimensions (LxWxH):1400mm x 500mm x 600mm

Standards Compliance:IEC 61850, IEEE C37.118

    The ABB AC10 272001R0101 IGCT Module is engineered for demanding industrial control systems, providing unmatched performance and reliability in power conversion tasks. This module utilizes state-of-the-art semiconductor technology to ensure efficient operation across a wide range of environmental conditions.

    Featuring an operating voltage of up to 1800V DC and current ratings reaching up to 1600A, this module is suitable for a variety of high-power applications requiring precise control over electrical power flow.

    With a switching frequency of up to 10kHz, it ensures rapid and smooth power adjustments, crucial for applications requiring fast response times. The thermal conduction cooling method ensures efficient heat dissipation, maintaining optimal operational temperatures.

    Designed to withstand extreme temperatures from -40°C to +100°C, the ABB IGCT Module is ideal for use in harsh industrial environments. Its high insulation class (Class H) guarantees exceptional electrical isolation and protection against high temperatures.

    The high-power contacts provide robust and secure connections, ensuring reliable power delivery. The ABB IGCT Module is compatible with various control systems and interfaces, making it a versatile solution for integration into existing or new industrial control systems.
