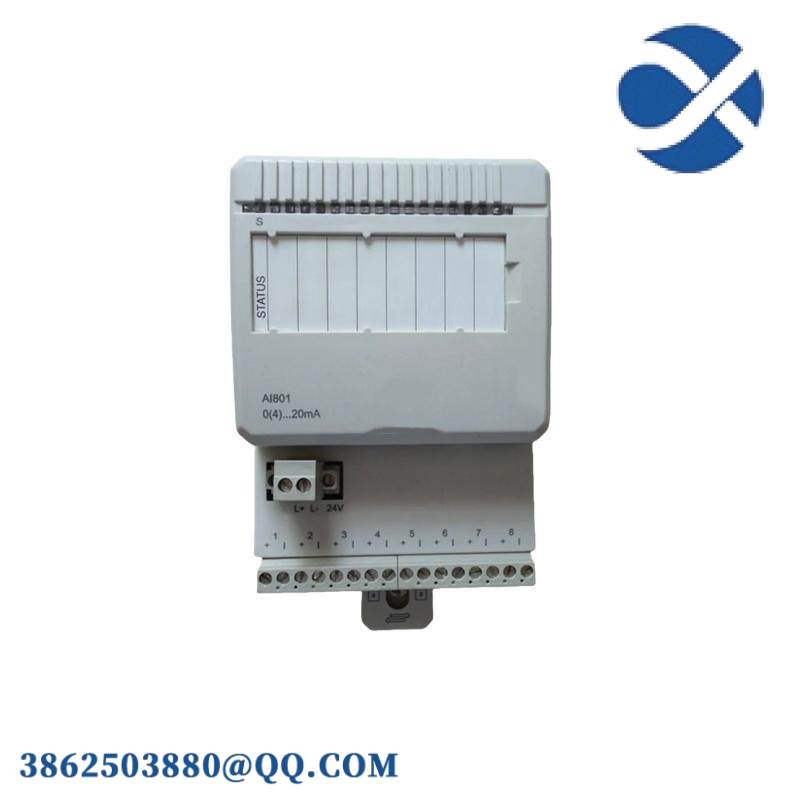

ABB 3BSE020512R1 AI801 – 8 Channel Analog Input Module for Industrial Control Systems

Type:Analog Input Module

Channels:8

Range:-20 VDC to +20 VDC

Resolution:12-bit

Sampling Rate:1 kHz

Accuracy:+/-0.1% of reading

Operating Temperature:-20°C to +70°C

Power Consumption:1.5 W

Communication Interface:RS-485 Modbus RTU

Isolation Rating:500 VAC

Dimensions:90 mm x 54 mm x 40 mm

Weight:0.2 kg

    The ABB 3BSE020512R1 AI801 is designed for seamless integration into complex industrial automation systems, ensuring precise measurement and control of analog signals in various environments.

    Featuring an advanced 12-bit resolution, this module delivers exceptional accuracy, making it ideal for applications requiring high precision, such as process control, data acquisition, and monitoring systems.

    With its robust design, the AI801 can withstand harsh industrial conditions, from freezing temperatures to high heat, ensuring reliable performance throughout its operational life.

    Equipped with a RS-485 Modbus RTU communication interface, this module facilitates easy connection and communication with other devices in the network, enhancing system efficiency and reducing setup time.

    The AI801 comes with a high isolation rating, safeguarding against electrical interference and protecting sensitive electronics, thus guaranteeing uninterrupted operation in noisy industrial settings.
