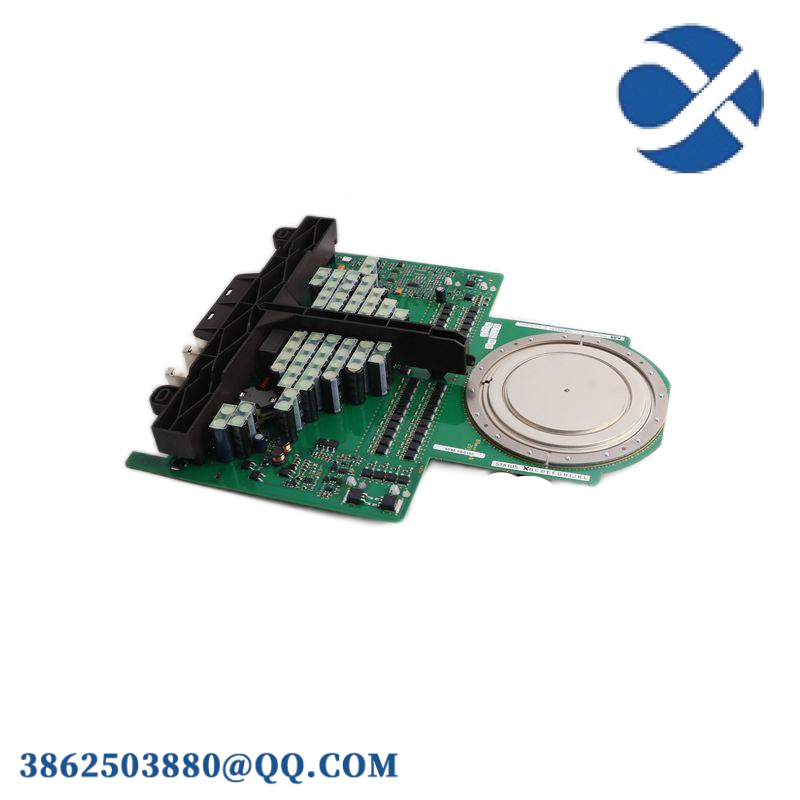

ABB 3BHB018160R0001 | 5SHY4045L0001 | IGCT MODULE

Manufacturer:ABB

Model Number:3BHB018160R0001, 5SHY4045L0001

Module Type:IGCT Module

Application Voltage:Up to 1600V DC

Maximum Current:4500A

Operating Frequency:50Hz to 60Hz

Insulation Resistance:≥10MΩ

Ambient Temperature Range:-40°C to +70°C

Environmental Protection Rating:IP54

Dimensions (WxHxD):200mm x 350mm x 400mm

Weight:25kg

Cooling System:Thermal Conduction Cooling

    This state-of-the-art IGCT module from ABB is engineered to deliver exceptional performance in industrial applications where reliability and power handling are critical.

    Featuring a compact yet sturdy design made from high-grade aluminum alloy, it ensures efficient heat dissipation and durability under extreme operating conditions.

    With an impressive input current capacity and a wide range of output voltages, this module is compatible with various power management systems, making it suitable for a broad spectrum of industrial sectors including renewable energy, process control, and electric drives.

    Equipped with advanced circuitry and control algorithms, the module offers precise current control and minimizes power loss, resulting in enhanced system efficiency.

    Designed with safety and ease of integration in mind, the module includes comprehensive protection features and is designed to be easily integrated into existing power systems, minimizing installation time and complexity.
