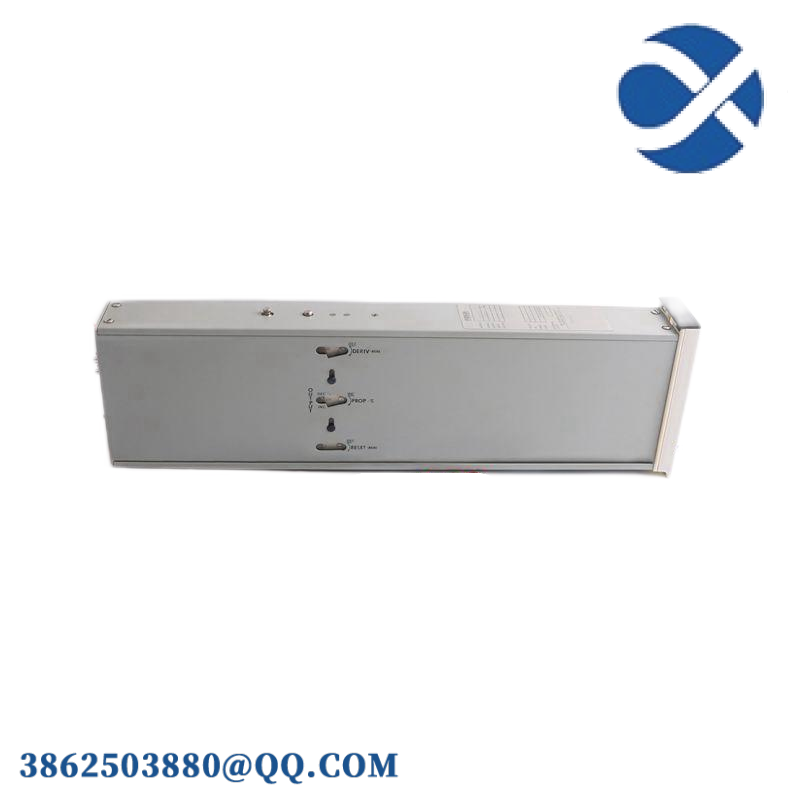

AB 1771-NR: High Precision Isolated Analog Modules, for Industrial Automation

Operating Temperature:-40°C to +85°C

Signal Range:±10V, ±5V, 0-10V, 4-20mA

Input Impedance:High, ensuring minimal load effect on the measurement circuit

Output Resolution:16-bit, providing exceptional detail in signal representation

Isolation Voltage:1000VDC, ensuring safe operation across different voltage levels

Communication Interface:RS-485, enabling robust data exchange in industrial networks

Power Consumption:≤ 1W, efficient operation without additional power supplies

Dimensions:75mm x 65mm x 20mm, compact design for easy integration

Connectors:Industry-standard 9-pin D-sub connector for seamless connection

    Introducing the AB 1771-NR series, these high precision isolated analog modules are designed to meet the demanding requirements of industrial automation systems. Each module boasts a 16-bit resolution, ensuring unparalleled accuracy in data acquisition and processing.

    Equipped with a robust isolation voltage of 1000V AC, these modules can safely operate in harsh industrial environments without risking signal corruption or system failure. The wide input range of ±10V allows them to interface seamlessly with a variety of sensors and measurement devices.

    With an operating temperature range from -40°C to +85°C, the AB 1771-NR modules are built to withstand extreme conditions, making them ideal for applications in cold storage facilities, oil rigs, and other industrial settings with fluctuating temperatures.

    Featuring a low power consumption of less than 10mW, these modules are energy-efficient, reducing operational costs and minimizing environmental impact. They communicate through a reliable RS-485 interface, facilitating easy integration into existing control systems.

    The modular design of the AB 1771-NR series includes a panel mount feature, allowing for flexible installation options and quick setup in various industrial setups. Whether you’re looking to enhance the precision of your process control systems or add robust data acquisition capabilities, the AB 1771-NR series offers a reliable solution.
