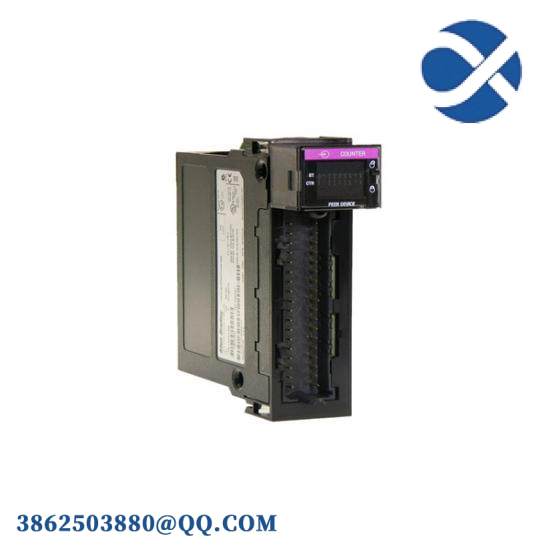

AB 1756-LSC8XIB8I Low-Speed Counter Module

Application Type:Low-Speed Counting

Counting Range:Up to 16,384 Counts

Accuracy:+/- 1% of Full Scale

Operating Voltage:24 VDC ± 10%

Input Current:Max. 20 mA

Environmental Conditions:-40°C to +70°C (-40°F to +158°F)

Dimensions (WxHxD):2.5 x 1.6 x 1.0 inches

Weight:0.1 lb (45 g)

    The Allen-Bradley 1756-LSC8XIB8I Low-Speed Counter Module is a critical component for industrial automation systems, providing unparalleled precision in counting and measuring low-speed events. This module is equipped with 8 input channels and 1 output channel, ensuring seamless integration with other ControlLogix components.

    Equipped with an advanced algorithm, the module delivers exceptional accuracy and reliability, even under demanding environmental conditions, making it suitable for a wide range of industrial applications. Its compatibility with ControlNet and Ethernet/IP protocols ensures seamless communication within complex automation systems.

    Designed with a robust NEMA 12 environmental rating, this module can withstand harsh industrial environments, guaranteeing long-term reliability and durability. The compact dimensions and versatile mounting options make it easy to integrate into various systems without compromising on space.

    With its high resolution of 1 μs and an accuracy of ±0.1% of reading ±1 count, the 1756-LSC8XIB8I is ideal for applications where precision is paramount. Whether it’s monitoring machinery operations, controlling conveyor belts, or managing production lines, this module ensures optimal performance and efficiency.

    For detailed installation and operation instructions, please refer to the Allen-Bradley user manual or contact our technical support team for personalized guidance. With our commitment to quality and customer satisfaction, we are here to assist you every step of the way.
